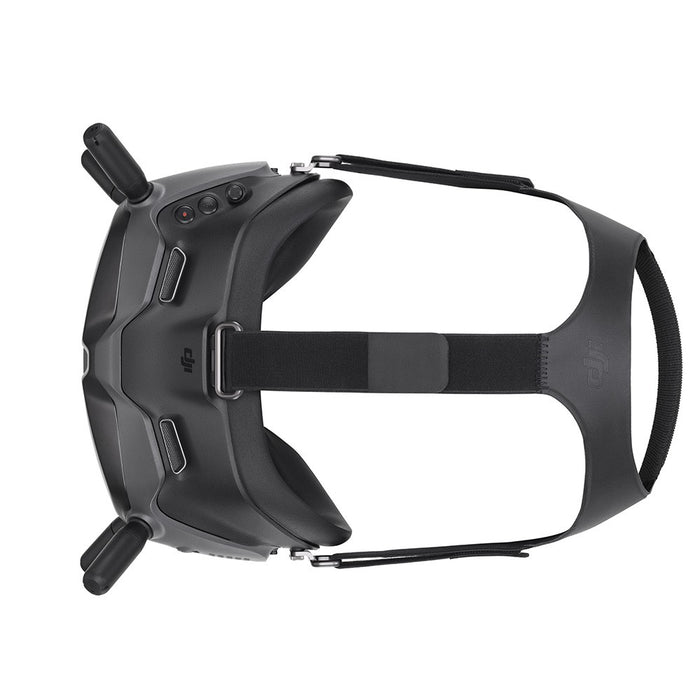

fpv dji goggles v2 DJI FPV Goggles V2 — DroneRacingParts.comThe DJI Digital HD FPV Goggles V2 built on the stellar reputation of the V1 DJI FPV Goggles. By taking the best features of V1 and adding some new future proof tech to these V2's they are truly one of a kind, in performance and style. DJI has created and honed its digital FPV system to satisfy the demands of FPV drone pilots. Racing and freestyle drone pilots alike want the fastest response, lowest latency and clearest video in their FPV system in

The DJI Digital HD FPV Goggles V2 built on the stellar reputation of the V1 DJI FPV Goggles. By taking the best features of V1 and adding some new future-proof tech to these V2's they are truly one-of-a-kind, in performance and style. DJI has created and honed its digital FPV system to satisfy the demands of FPV drone pilots.

Racing and freestyle drone pilots alike want the fastest response, lowest latency and clearest video in their FPV system in order to perform fast movements with the most accuracy. Analog video was the best way to achieve low latency and fast response, but the video was never very clear. And conversely with digital, the video was clear and crisp, but there was a noticeable delay that many pilots couldn't live with - plus digital HD systems were bulky and cumbersome to put on your drone.

Well, all of that changed with DJI's entry to Digital HD, and now that has changed again with the release of DJI FPV Goggles V2. Crystal clear 810p 120fps (Low-Latency Mode) or 810p 60fps (HQ Mode) video directly to your goggles, with the lowest latency ever before on a digital HD system!

On top of that, get maximum transmission ranges up to 4km with the built-in receiver! No need to spend additional money on an external receiver module.

Note: These goggles require the DJI FPV Air Unit or Caddx Vista/Nebula in order to work. However, using the DJI FPV Remote Controller is optional.

Please note:

Due to the disruption of the supply chain and rising costs for chips and other raw materials, this item does not qualify for free shipping or discount codes.

Specifications

Weight: Approx. 420 g (headband and antennas included)

• Dimensions:
• 202 × 126 × 110 mm (antennas included)
• 184 × 122 × 110 mm (antennas excluded)
• Screen Size: 2-inch × 2
• Screen Resolution (Single Screen): 1440 × 810
• Screen Renew Rate: 144 Hz
• Communication Frequency: 2.400 - 2.4835 GHz*; 5.725-5.850 GHz *Only supports 5.8Ghz when used with DJI FPV Air Unit
• Transmitter Power (EIRP) :
• 2.400 - 2.4835 GHz FCC/MIC: ≤28.5 dBm; CE: ≤20 dBm; SRRC: ≤20 dBm; MIC: ≤20 dBm
• 5.725-5.850 GHz FCC/MIC: ≤31.5 dBm; CE: ≤14 dBm; SRRC: ≤19 dBm
• Live View Mode: Low Latency Mode (810p/120fps) High-Quality Mode (810p/60fps)
• Video Format: MP4 (Video format: H.264)
• Supported Video Play Format: MP4, MOV, MKV (Video format: H.264; Audio format: AAC-LC, AAC-HE, AC-3, MP3)
• Operating Temperature: 32° to 104° F (0° to 40° C)
• Power Input: 7.4-17.6 V
• FOV: Adjustable from 30° to 54°. Adjustable image size from 50%-100%
• Interpupillary Distance Range: 58 -70 mm
• Supported Storage Card: microSD cards with capacities of up to 256GB

DJI FPV Goggles Battery

• Capacity: 1800 mAh
• Voltage: 9 V (Max.)
• Type: LiPo 2S Charging Temperature 0℃ to 45℃
• Energy: 18 Wh
• Max Charging Power: 10 W
• Battery Life:  Approx. 110 minutes (measured in an environment of 25°C at maximum brightness level)

Videos

Tips

Avoid exposing the goggles to direct sunlight. If you use DJI FPV Goggles and DJI FPV Remote Controller at the same time, you must first link the air unit and the goggles together, and then link the remote controller to the air unit.

Compatibility

- DJI FPV Air Unit
- DJI FPV Remote Controller

Includes

• DJI FPV Goggles V2 (including the foam padding) × 1
• 1x DJI FPV Goggles Battery (1800mAh 9V)
• Power cable (USB C) × 1
• DJI FPV Goggles Antenna (Dual Band) × 4
• Headband × 1
• USB-C cable × 1
• Sleeve ×  1

Note: If you're having trouble binding your V2 goggles to DJI Air Unit click here and follow these instructions to update the firmware.
